Total Grip components

Base Plates

Our range of base plates is engineered to deliver reliable, adaptable anchorage solutions for a wide variety of structural conditions. Big Horse Safety Company Inc. offers aluminum base plates for less invasive, corrosion‑resistant applications; steel bent plates for enhanced strength and durability; and advanced extruded aluminum base plates (models 550 and 700) designed for superior load distribution and structural performance. Each base plate is developed to ensure secure installation, long‑term reliability, and full compatibility with our horizontal lifeline and fall protection systems, making them ideal for both new installations and retrofit projects in industrial and commercial environments.

Aluminum Base Plate

Aluminum Base Plate

Steel deck with insulationWoodConcrete

If you need to install over concrete, metal roof with insulation or steel structure, you should select our Aluminum Base Plate.

The Aluminum Base Plate is designed to be used as a single anchor point or as part of our permanent lifeline system Total Grip.

The Aluminum Base Plate is the connection between the roofing structure and the worker through the anchor point installed on it.

MaterialAluminum
FixingToggle anchor (small 4.5 cm hole)

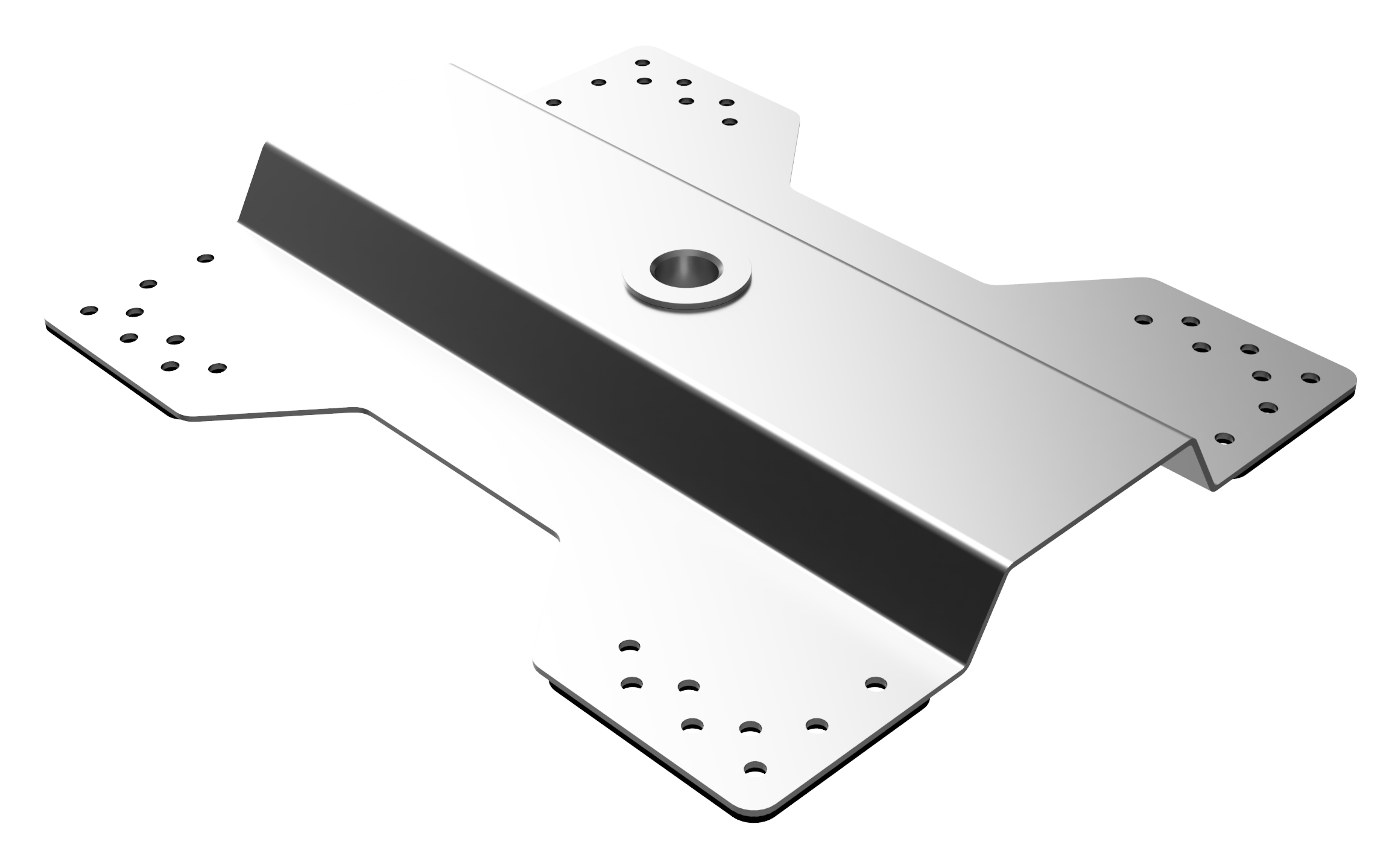

Steel Bent Plate

Steel Bent Plate

TrapezoidalPanel sandwich roof

If you need to install over a trapezoidal roof, you should select our steel bent plate.

The Steel Bent Plate is a stamped manufactured plate that is designed to be used as a single anchor point or as part of our permanent lifeline system Total Grip.

Our Steel Bent Plate is the connection between the roofing structure and the worker through the anchor point installed on it.

MaterialStamped steel
Fixing7.7 mm aluminum rivets

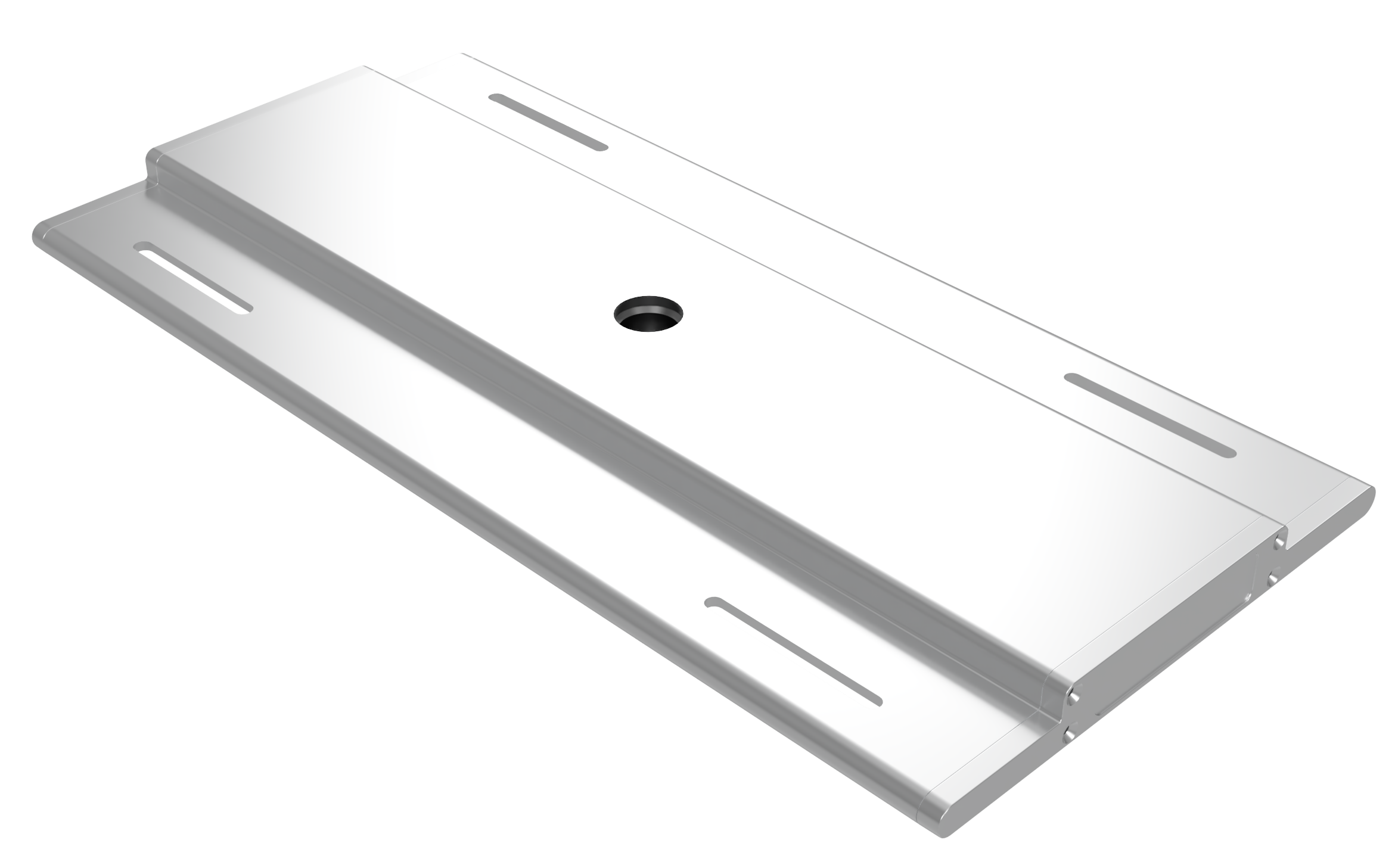

Aluminum Extruded Base Plate 550 and 700

Aluminum Extruded Base Plate 550 and 700

Standing seamDouble foldRound fold

Advanced extruded aluminum base plates, available as models 550 and 700, designed for superior load distribution and structural performance on standing seam roofs with double or round folds. Like all our base plates, it can be used as a single anchor point or as part of the Total Grip permanent lifeline system.

MaterialExtruded aluminum
Models550 · 700
FixingAluminum roof clamps
← Back to the Total Grip system

Need a quote for Base Plates?

Our team will confirm compatibility with your roof and system.
